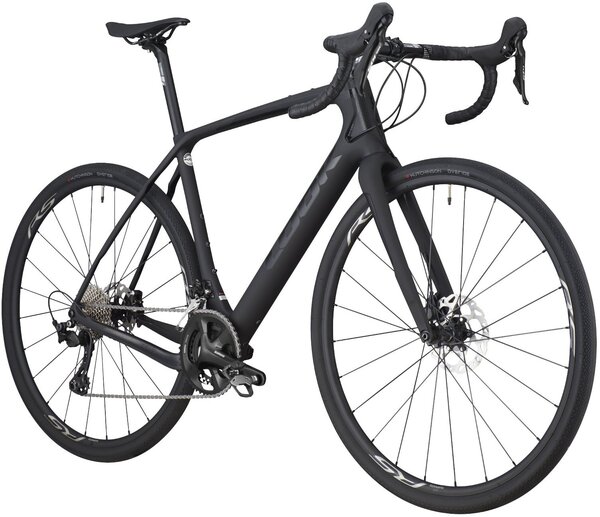

LOOK 765 Gravel Disc Comp
This item is currently not available.
Details
If you don't feel like making waves, the 765 GRAVEL is the bike for you. From the road to the trail, this carbon frame guarantees an exceptional ride. Combined with carefully-selected components, such as the 105 groupset and Shimano RS wheels, the deep black paintwork finishes off what is a down-to-earth, highly-efficient ride.
Barely exceeding 9kg, this is a light and responsive bike to take you wherever you wish to go. Enjoy the 100% carbon, Made by LOOK frame and fork: the guarantee of a reliable, high-performance base. The 700x38 tires on Shimano RS 170 wheels combined with Shimano disc brakes leave no room for hesitation, even on technical sections.
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| A. Reach | 355mm | 365mm | 375mm | 385mm | 395mm |
| B. Stack | 530mm | 554mm | 578mm | 602mm | 626mm |
| C. Standover | 745mm | 765mm | 793mm | 816mm | 843mm |
| D. Effective Top Tube | 507mm | 524mm | 552mm | 569mm | 586.5mm |
| E. Head Tube Angle | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° |
| F. Head Tube Length | 111.5mm | 137mm | 162.5mm | 188mm | 213.5mm |
| G. Seat Tube Angle | 74° | 74° | 73° | 73° | 73° |
| H. Seat Tube Length | 470mm | 490mm | 510mm | 535mm | 560mm |
| J. Bottom Bracket Drop | 70mm | 70mm | 70mm | 70mm | 70mm |
| K. Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm |
| L. Trail | 72mm | 72mm | 72mm | 72mm | 72mm |
| N. Front to Center | 577mm | 595.5mm | 614mm | 632.5mm | 651mm |
| O. Chainstay Length | 420mm | 420mm | 420mm | 420mm | 420mm |
| Fork Length | 395mm | 395mm | 395mm | 395mm | 395mm |
Specs
| Frame | UD Carbon-Finish High Modulus Carbon Frame |
|---|---|
| Fork | Ultra Light High Modulus Carbon Fork |
| Wheels | Shimano RS 170 Disc CL |
| Axles | Speed Release Ready 142 x 12 R / 100 x 12 F |
| Tires | Hutchinson Overide 700c x 38 Tan Tubetype (bike delivered with inner tube) |
| Bottom Bracket | BB 386 / Token Ninja TF 38624 |
| Crankset | Shimano RS 510 50x34T ( XS-S 170mm / M-L 172.5mm / XL 175mm) |
| Shifters | Shimano 105 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Cassette/Freewheel | Shimano HG 700 11x34T |
| Chain | Shimano HG 601 |
| Brakes | Shimano 105 Disc Hydraulic Flat Mount |
| Rotors | Shimano RT 70 F: 160mm / R: 140mm |
| Handlebars | LOOK LS2 Alloy Gravel 12° Flare (XS-S 40cm / M-L 42cm / XL 44cm) |
| Stem | LOOK LS2 (XS-S-M 90mm / L 100mm / XL 110mm) |
| Seatpost | LOOK LS3 Alloy 27.2mm X 350mm |
| Saddle | San Marco Monza Full Fit |
| Pedals | Sold separately |
* Subject to change without notice.
